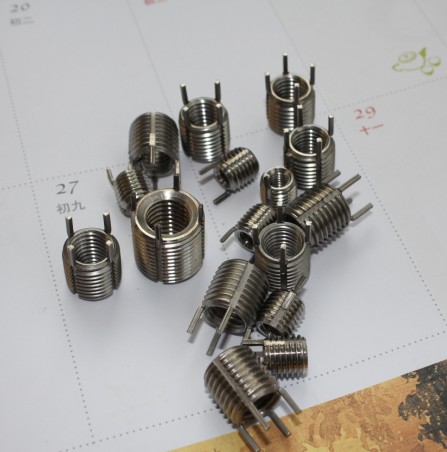

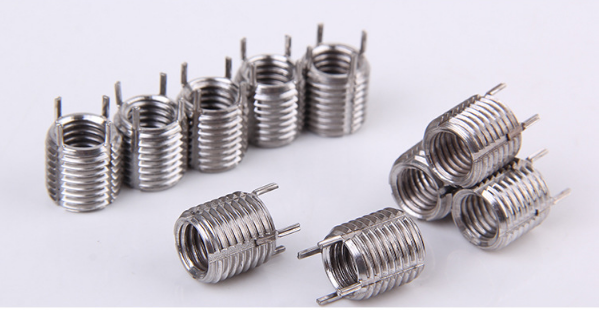

插销螺套材料有碳钢和不锈钢两种，从产品的外在型式来看，有薄壁型和重型之区分。规格上也同时具备公制英制尺寸。
插销螺套具体规格参数表如下：
|
1、插销螺套（薄壁型）规格参数 |
||||
|
内螺纹 |
外螺纹 |
长度L（mm） |
钻孔钻头尺寸 |
底孔深度 |
|
M 2x0.4 |
M 4x0.7 |
3 |
3.4 |
4 |
|
M 2.5x0.45 |
M 4.5x0.75 |
3.81 |
3.9 |
5 |
|
M 3x0.5 |
M 5x0.8 |
4.25 |
4.4 |
5.5 |
|
M 4x0.7 |
M 6x0.75 |
5.25 |
5.5 |
6.5 |
|
M 5x 0.8 |
M 8x1.25 |
8 |
6.9 |
9.5 |
|
M 6x 1.0 |
M10x1.25 |
10 |
8.8 |
11.5 |
|
M 8x1.25 |
M12x1.25 |
12 |
10.8 |
13.5 |
|
M 8x 1.0 |
M12x1.25 |
12 |
10.8 |
13.5 |
|
M10x 1.5 |
M14x 1.5 |
14 |
12.8 |
15.5 |
|
M10x1.25 |
M14x 1.5 |
14 |
12.8 |
15.5 |
|
M12x1.75 |
M16x 1.5 |
16 |
14.75 |
17.5 |
|
M12x1.25 |
M16x 1.5 |
16 |
14.75 |
17.5 |
|
2、插销螺套（重型）规格参数 |
||||
|
内螺纹 |
外螺纹 |
长度L（mm） |
钻孔钻头尺寸 |
底孔深度 |
|
M 4x 0.7 |
M 8x1.25 |
8 |
6.9 |
9.5 |
|
M 5x 0.8 |
M10x1.25 |
10 |
8.8 |
12.5 |
|
M 6x 1.0 |
M12x1.25 |
12 |
10.8 |
14.5 |
|
M 8x1.25 |
M14x 1.5 |
14 |
12.8 |
16.5 |
|
M 8x 1.0 |
M14x 1.5 |
14 |
12.8 |
16.5 |
|
M10x 1.5 |
M16x 1.5 |
16 |
14.75 |
18.5 |
|
M10x1.25 |
M16x 1.5 |
16 |
14.75 |
18.5 |
|
M12x1.75 |
M18x 1.5 |
18 |
16.75 |
20.5 |
|
M12x1.25 |
M18x1.5 |
18 |
16.75 |
20.5 |
|
M14x 2.0 |
M20x 1.5 |
20 |
18.75 |
22.5 |
|
M14x 1.5 |
M20x 1.5 |
20 |
18.75 |
22.5 |
|
M16x 2.0 |
M22x 1.5 |
22 |
20.5 |
24.5 |
|
M16x 1.5 |
M22x 1.5 |
22 |
20.5 |
24.5 |
|
M18x 1.5 |
M24x 1.5 |
24 |
22.5 |
26.5 |
|
M20x 2.5 |
M30x 2.0 |
30 |
28 |
34.5 |
|
M20x 1.5 |
M30x 2.0 |
30 |
28 |
34.5 |
|
M22x 1.5 |
M32x 2.0 |
32 |
30 |
36.5 |
|
M24x 3.0 |
M33x 2.0 |
33 |
31 |
37.5 |
|
M24x 2.0 |
M33x 2.0 |
33 |
31 |
37.5 |
