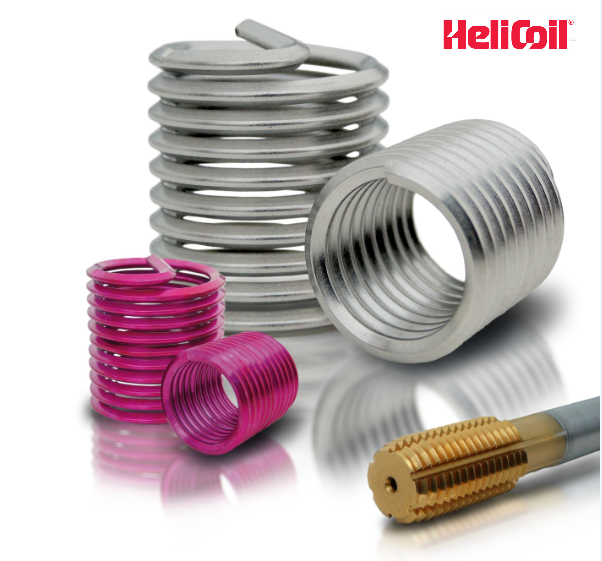

heli-coil螺纹护套按尺寸分类为：公制和美制。
heli-coil钢丝螺纹护套的规格型号如下：
1. heli-coill公制钢丝螺纹护套规格表：
螺纹规格
长度d
长度mm
顺牙型Free-Running
锁紧型Screw Lock
M2X0.4
1d
2
1084-2CN020
4184-2CN020
1.5d
3
1084-2CN030
4184-2CN030
2d
4
1084-2CN040
4184-2CN040
2.5d
5
1084-2CN050
4184-2CN050
3d
6
1084-2CN060
4184-2CN060
M2.5X0.45
1d
2.5
1084-2.5CN025
4184-2.5CN025
1.5d
3.8
1084-2.5CN038
4184-2.5CN38
2d
5
1084-2.5CN050
4184-2.5CN050
2.5d
6.3
1084-2.5CN063
4184-2.5CN063
3d
7.5
1084-2.5CN075
4184-2.5CN075
M3X0.5
1d
3
1084-3CN030
4184-3CN030
1.5d
4.5
1084-3CN045
4184-3CN045
2d
6
1084-3CN060
4184-3CN060
2.5d
7.5
1084-3CN075
4184-3CN075
3d
9
1084-3CN090
4184-3CN090
M4X0.7
1d
4
1084-4CN040
4184-4CN040
1.5d
6
1084-4CN060
4184-4CN060
2d
8
1084-4CN080
4184-4CN080
2.5d
10
1084-4CN100
4184-4CN100
3d
12
1084-4CN120
4184-4CN120
M5X0.8
1d
5
1084-5CN050
4184-5CN050
1.5d
7.5
1084-5CN075
4184-5CN075
2d
10
1084-5CN100
4184-5CN100
2.5d
12.5
1084-5CN125
4184-5CN125
3d
15
1084-5CN150
4184-5CN150
M6X1
1d
6
1084-6CN060
4184-6CN060
1.5d
9
1084-6CN090
4184-6CN090
2d
12
1084-6CN120
4184-6CN120
2.5d
15
1084-6CN150
4184-6CN150
3d
18
1084-6CN180
4184-6CN180
M7X1
1d
7
1084-7CN070
4184-7CN070
1.5d
10.5
1084-7CN105
4184-7CN105
2d
14
1084-7CN140
4184-7CN140
2.5d
17.5
1084-7CN175
4184-7CN175
3d
21
1084-7CN210
4184-7CN210
M8X1.25
1d
8
1084-8CN080
4184-8CN080
1.5d
12
1084-8CN120
4184-8CN120
2d
16
1084-8CN160
4184-8CN160
2.5d
20
1084-8CN200
4184-8CN200
3d
24
1084-8CN240
4184-8CN240
M10X1.5
1d
10
1084-10CN100
4184-10CN100
1.5d
15
1084-10CN150
4184-10CN150
2d
20
1084-10CN200
4184-10CN200
2.5d
25
1084-10CN250
4184-10CN250
3d
30
1084-10CN300
4184-10CN300
2. heli-coil美标钢丝螺纹护套规格表:
螺纹规格
长度d
长度mm
顺牙型Free-Running
锁紧型Screw Lock
2-56
1d
0.086
1185-02CN0086
3585-02CN0086
1.5d
0.129
1185-02CN0129
3585-02CN0129
2d
0.172
1185-02CN0172
3585-02CN0172
2.5d
0.215
1185-02CN0215
3585-02CN0215
3d
0.258
1185-02CN0258
3585-02CN0258
4-40
1d
0.112
1185-04CN0112
3585-04CN0112
1.5d
0.168
1185-04CN0168
3585-04CN0168
2d
0.224
1185-04CN0224
3585-04CN0224
2.5d
0.28
1185-04CN0280
3585-04CN0280
3d
0.336
1185-04CN0336
3585-04CN0336
5-40
1d
0.125
1185-05CN0125
3585-05CN0125
1.5d
0.188
1185-05CN0188
3585-05CN0188
2d
0.25
1185-05CN0250
3585-05CN0250
2.5d
0.312
1185-05CN0312
3585-05CN0312
3d
0.375
1185-05CN0375
3585-05CN0375
6-32
1d
0.138
1185-06CN0138
3585-06CN0138
1.5d
0.207
1185-06CN0207
3585-06CN0207
2d
0.276
1185-06CN0276
3585-06CN0276
2.5d
0.345
1185-06CN0345
3585-06CN0345
3d
0.414
1185-06CN0414
3585-06CN0414
8-32
1d
0.164
1185-2CN0164
3585-2CN0164
1.5d
0.246
1185-2CN0246
3585-2CN0246
2d
0.328
1185-2CN0328
3585-2CN0328
2.5d
0.41
1185-2CN0410
3585-2CN0410
3d
0.492
1185-2CN0492
3585-2CN0492
10-24
1d
0.19
1185-3CN0190
3585-3CN0190
1.5d
0.285
1185-3CN0285
3585-3CN0285
2d
0.38
1185-3CN0380
3585-3CN0380
2.5d
0.475
1185-3CN0475
3585-3CN0475
3d
0.57
1185-3CN0570
3585-3CN0570
12-24
1d
0.216
1185-1CN0216
3585-1CN0216
1.5d
0.324
1185-1CN0324
3585-1CN0324
2d
0.432
1185-1CN0432
3585-1CN0432
2.5d
0.54
1185-1CN0540
3585-1CN0540
3d
0.648
1185-1CN0648
3585-1CN0648
1/4-20
1d
0.25
1185-4CN0250
3585-4CN0250
1.5d
0.375
1185-4CN0375
3585-4CN0375
2d
0.5
1185-4CN0500
3585-4CN0500
2.5d
0.625
1185-4CN0625
3585-4CN0625
3d
0.75
1185-4CN0750
3585-4CN0750
5/16-18
1d
0.312
1185-5CN0312
3585-5CN0312
1.5d
0.469
1185-5CN0469
3585-5CN0469
2d
0.625
1185-5CN0625
3585-5CN0625
2.5d
0.781
1185-5CN0781
3585-5CN0781
3d
0.938
1185-5CN0938
3585-5CN0938
